Microservice Pattern – Competing Consumers Pattern Implementation With Kubernetes

Overview:

In the distributed systems, we enable loose coupling between systems by passing messages via a service bus / message queue. We had implemented that in one of the architectural pattern series here. Sometimes, when the message throughout is extremely high – that is number of the incoming messages per unit time is greater than the number of messages processed per unit time – then queue will end up holding infinite number of messages. The message queue might fail eventually due to Out Of Memory error and clients might never receive the response for the messages they had sent! To avoid this, if we plan to run N number of servers always and if we never receive any message, then we will end up paying for these unused servers.

The cost effective solution would be auto-scaling! This concept is nothing new. In this article, we are going to scale message-consumers out / in based on the CPU utilization in a Kubernetes cluster. This way when 1 server is struggling to process all the messages, we bring additional servers to speed up the process to reduce the load on the single server and balance the workload.

Sample Application:

  • I am going to reuse the application which we had used before here. Check that out for better understanding.
    • Our application is going to place some tasks into a message queue as and when the requests arrive.
    • Tasks are going to be finding the Nth position in the Fibonacci series! I am going to use 2^N algorithm to make the process very slow.
    • There will be some categories like LOW, HIGH, URGENT to prioritize the tasks. Obviously URGENT tasks should be done first!
    • Task-executor is a message processor to consume the messages. By default we will have 1 message processor up and running always.
      • But 1 node might not be enough sometimes.
      • Based on the CPU utilization, our auto-scaler will bring additional Pods up.

Advantages:

This approach has several advantages.

  • Loose coupling between producers and consumers.
  • We can dynamically scale out or scale in based on the demand. (In this article, we use CPU utilization. We could also use based on the messages count in the queue)
  • Reliable
  • Load leveling. A single server is not responsible for processing all the messages. Load is distributed among multiple message processors/consumers.

Kubernetes Resources:

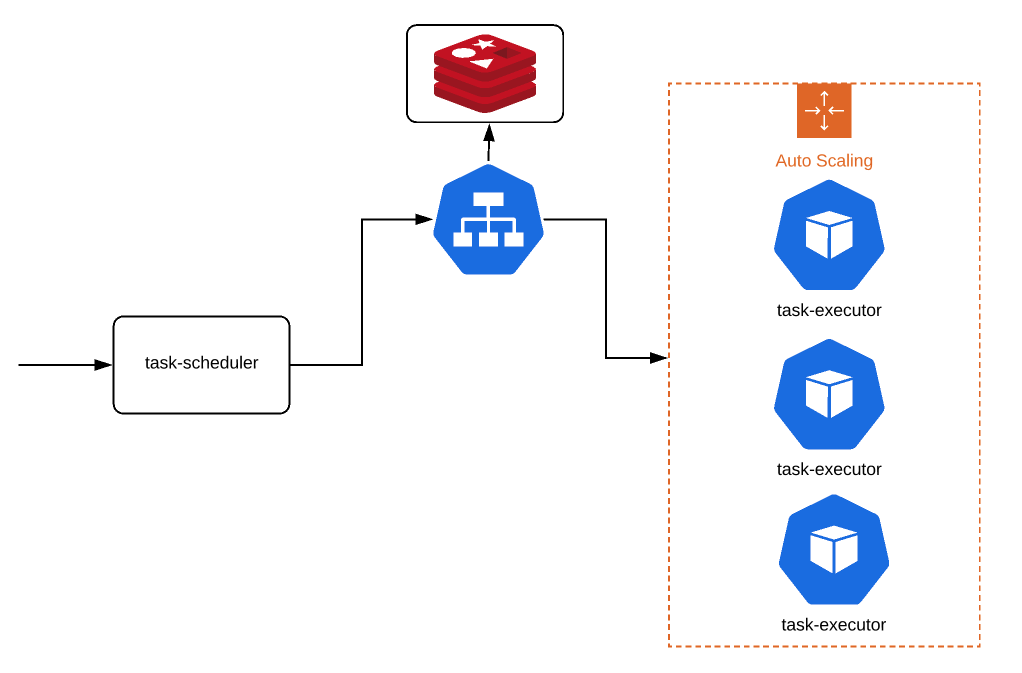

  • We would be creating resources as shown in this picture.



  • redis
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: redis-master
  name: redis-master
spec:
  replicas: 1
  selector:
    matchLabels:
      app: redis-master
  template:
    metadata:
      labels:
        app: redis-master
    spec:
      containers:
      - image: redis
        name: redis-master
        ports:
        - containerPort: 6379
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: redis-master
  name: redis-master
spec:
  ports:
  - name: redis-port
    port: 6379
    protocol: TCP
    targetPort: 6379
  selector:
    app: redis-master
  type: ClusterIP
  • task-scheduler
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: task-scheduler
  name: task-scheduler
spec:
  replicas: 1
  selector:
    matchLabels:
      app: task-scheduler
  template:
    metadata:
      labels:
        app: task-scheduler
    spec:
      containers:
      - image: vinsdocker/task-scheduler
        name: task-scheduler
        env:
        - name: REDIS_HOST
          value: redis-master
        ports:
        - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: task-scheduler
  name: task-scheduler
spec:
  ports:
  - name: task-scheduler
    port: 8080
    protocol: TCP
    targetPort: 8080
    nodePort: 32001
  selector:
    app: task-scheduler
  type: NodePort
  • task-executor
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: task-executor
  name: task-executor
spec:
  replicas: 1
  selector:
    matchLabels:
      app: task-executor
  template:
    metadata:
      labels:
        app: task-executor
    spec:
      containers:
      - image: vinsdocker/task-executor
        name: task-executor
        env:
        - name: REDIS_HOST
          value: redis-master
        resources:
          requests:
            cpu: 200m
            memory: 512Mi
  • Horizontal Pod Autoscaler (HPA):
apiVersion: autoscaling/v2beta2
kind: HorizontalPodAutoscaler
metadata:
  name: task-executor
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: task-executor
  minReplicas: 1
  maxReplicas: 3
  metrics:
  - type: Resource
    resource:
      name: cpu
      target:
        type: Utilization
        averageUtilization: 50

Resource Utilization:

  • When there is no load, the CPU/Memory utilization of the cluster is more or less like this.
NAME                              CPU(cores)   MEMORY(bytes)
redis-master-65f7f8cf88-8tqxm     3m           2Mi
task-executor-7dd8855487-2gzbf    4m           184Mi
task-scheduler-86d64c5598-kd6sr   3m           192Mi
  • The HPA output is as shown here (kubectl get hpa).
NAME            REFERENCE                  TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
task-executor   Deployment/task-executor   3%/50%    1         3         1          5m
  • I send hundreds of messages to the task-scheduler and wait for 2 mins.
  • I can see the CPU utilization increase and number of task-executors increase from 1 to 3.
// kubectl get hpa

NAME            REFERENCE                  TARGETS     MINPODS   MAXPODS   REPLICAS   AGE
task-executor   Deployment/task-executor   205%/50%    1         3         3          7m

// kubectl top pods

NAME                              CPU(cores)        MEMORY(bytes)
redis-master-65f7f8cf88-8tqxm     5m                3Mi
task-executor-7dd8855487-2gzbf    526m              176Mi
task-executor-7dd8855487-5897f    489m              176Mi
task-executor-7dd8855487-t8tbp    512m              179Mi
task-scheduler-86d64c5598-kd6sr   3m                189Mi
  • Once the messages are processed, wait for 5 mins and kubernetes will scale these consumers in and only one instance will be up and running.

Summary:

We were able to successfully demonstrate the auto-scaling the message consumers based on the CPU utilization to achieve load leveling, loose coupling and speeding up the message processing.

Happy coding 🙂
